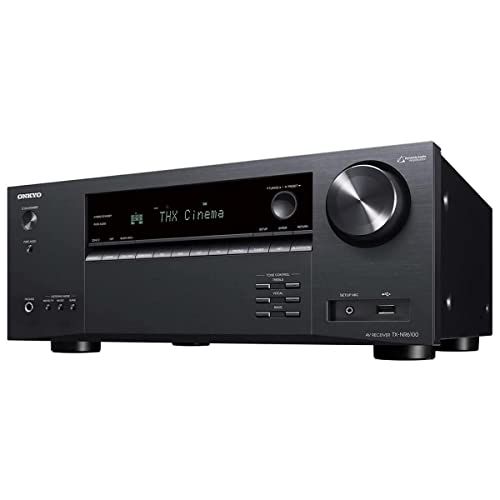

Onkyo TX-NR6100 Specs
Amplifier
Channels 5.2.2
Power Output per Channel 1-Channel Driven:
210 W at 6 Ohms / 1 kHz / 10% THD
2-Channel Driven:
100 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD
Dynamic Power per Channel 240 W at 3 Ohms (Front)
210 W at 4 Ohms (Front)
120 W at 8 Ohms (Front)
Frequency Response 10 Hz to 100 kHz +1 dB (Direct, Pure Mode)
THD+N 0.08% (20 Hz to 20 kHz, Half Power)
Speaker Impedance 4 to 16 Ohms
Tone Control Bass (20 Hz): ±10.0 dB
Treble (20 kHz): ±10.0 dB
Audio Processing
DTS Compatibility DTS:X
Dolby Compatibility Dolby Atmos
Auro 3D Support No
Video
Pass-Through Support 4K120p
Upscaling None
Connectivity

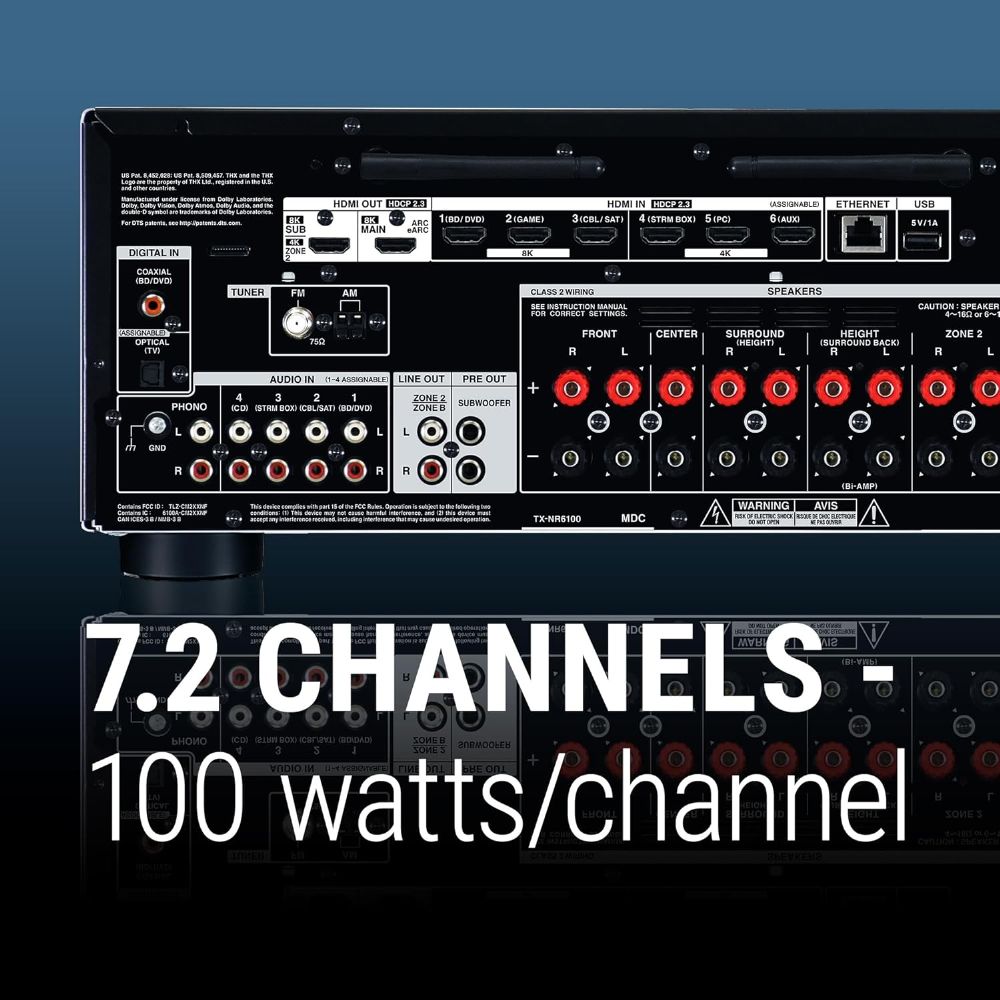

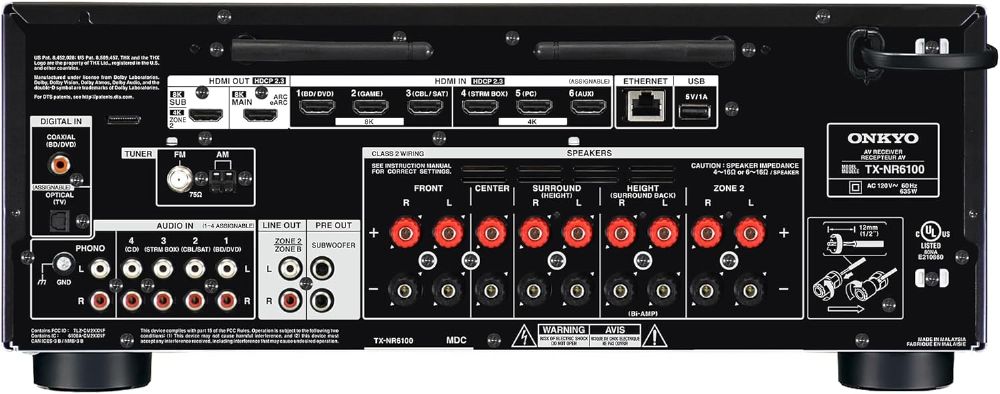

Rear A/V Inputs 3 x HDMI 2.1
3 x HDMI 2.0
4 x RCA
1 x Stereo RCA (Phono) with Ground Screw
1 x Optical TOSLINK
1 x Digital Coaxial
Rear A/V Outputs 1 x HDMI
1 x HDMI Zone 2
1 x RCA Zone 2 / Zone B Line-Out
2 x RCA Subwoofer Pre-Out
Front I/O 1 x 1/4" / 6.35 mm Headphone Output
1 x 1/8" / 3.5 mm Microphone Input
1 x USB Type-A Input
Other Rear I/O 1 x FM Coaxial F-Type Input
1 x AM Block Input
1 x RJ45 (Ethernet) Input/Output
1 x USB Type-A (Power) Output
Speaker Connectors 7 x Binding Post Pairs
HDCP Support Version 2.3
HDMI Compression Modes 4K120AB / 8K60AB
Audio Return Channel (ARC) ARC, eARC
HDMI CEC Yes
Media Card Slot None
Bi-Amp Capability Yes
Input Impedance Line: 47 Kilohms
Phono (MM): 47 Kilohms
Input Sensitivity Line: 200 mVrms
Phono (MM): 3.5 mVrms
Rated Output / Impedance Subwoofer Pre-Out: 1 Vrms / 470 Ohms
Zone B / 2 Line-Out: 200 mVrms / 470 Ohms
Signal to Noise Ratio Line: 106 dB (IHF-A)
Phono: 80 dB (IHF-A)
Wireless Connectivity
Wi-Fi Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
Supported Audio Codecs AAC, SBC, aptX, aptX HD
Wireless Audio Protocols AirPlay 2, Chromecast built-in, DTS Play-Fi
Control
Virtual Assistant Works with Alexa, Works with Google Assistant
Tuner Section
Tuner Type AM, FM
Number of Tuner Presets 40 Stations
Radio Frequencies AM: 530 to 1710 kHz
FM: 87.5 to 107.9 MHz
Power
AC Input Power 120 VAC, 60 Hz
Power Consumption Active: 635 W
No Sound: 65 W
Standby: 0.1 W
Physical
Dimensions (W x H x D) 17.1 x 6.8 x 14.9" / 435.0 x 173.5 x 379.5 mm
Weight 21.6 lb / 9.8 kg
Packaging Info
Package Weight 25.855 lb
Box Dimensions (LxWxH) 20.8 x 18.3 x 10.1"
