Compact in size, light weight and fully featured, the Canon XF105 Professional Camcorder can be tailored to fit a wide range of individual needs. While sharing many of the capabilities of the Canon XF305 and XF300 Professional Camcorders, including the Canon XF Codec and Compact Flash (CF) recording, the XF105 offers some exciting new features of its own.
Other key features of the XF105 include infrared recording and--when used in combination with another XF105 or XF100--3D stereoscopic capability. The combination of professional image quality, manual controls, and portability makes the XF105 the ideal tool for a wide range of applications, including ENG, travel documentaries, indie features, and event videography. The camera also has HD/SD-SDI output, genlock, and SMPTE timecode terminals, widening its range of uses to live and multi-camera productions.
General
Product TypeCamcorder - 1080p
Camcorder Sensor Resolution2.37 Mpix
Effective Video Resolution2.07 Mpix
Effective Photo Resolution2.07 Mpix
Widescreen Video CaptureYes
Camcorder Media TypeFlash card
Optical Sensor TypeCMOS
Optical Sensor Size1/3"
Optical Zoom10 x
Digital Zoom6 x
Image ProcessorDIGIC DV III
Image StabilizerOptical
Auto FocusTTL contrast detection
Digital Video FormatMPEG-2
Image Recording FormatJPEG
Audio Signal FormatPCM
FeaturesSMPTE Color Bars, selectable frame rates, SMPTE Time Code, zebra pattern, waveform monitor
AV InterfacesComposite video/audio, HDMI
Min Illumination0.7 lux
Exposure ModesProgram, automatic, manual
White BalanceCustom, automatic, presets
White Balance PresetsTungsten light, daylight, 2000K - 15000K (100K steps)
Max Shutter Speed1/2000 sec
Min Shutter Speed1/18 sec
Gain Selection+12 dB, +18 dB, +3 dB, +6 dB, 0 dB, -3 dB, + 9 dB, +15 dB, +24 dB, +21 dB, +33 dB
Type10 x zoom lens - 4.25 - 42.5 mm - f/1.8-2.8
Focal Length Equivalent to 35mm Camera30.4 - 304mm
Focus AdjustmentAutomatic, manual
Min Focus Distance23.6 in
Macro Focus Range0.8 in
Zoom AdjustmentMotorized drive
Lens Construction10 groups / 12 elements
Filter Size58 mm
FeaturesBuilt-in neutral density filter
Low Lux / Night ModeYes
Additional FeaturesUSB 2.0 compatibility, digital noise reduction, progressive scanning, interval shooting mode, takes photos while movie recording, Pre-Rec function, face detection, 25p Cinema Mode, Exif Print support
Viewfinder TypeElectronic
Viewfinder Color SupportColor
Viewfinder Diagonal Size0.24"
Viewfinder Resolution260,000 pixels
Field Coverage100%
Dioptric Correction Range-5 to +2
Image Aspect Ratio16:9
FeaturesTilting
Type3.5" LCD display
Resolution920,000 pixels
Display FeaturesRotating
Microphone Operation ModeStereo
Microphone FeaturesSensitivity control

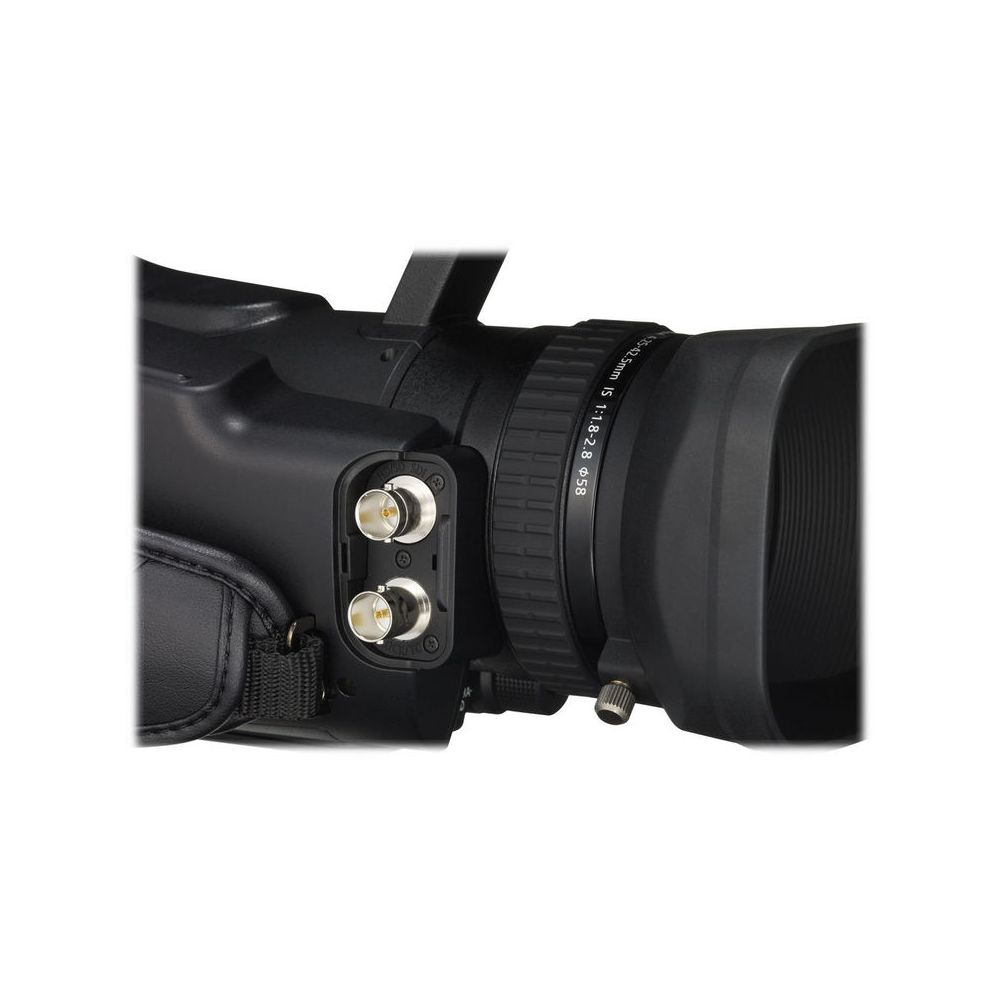

Connector Type1 x headphones ( mini-phone stereo 3.5 mm ) 1 x audio input ( 3 pin XLR ) 1 x Hi-Speed USB ( mini-USB Type B ) 1 x composite video/audio output ( mini-phone 3.5 mm 4-pole ) 1 x component video output 1 x HDMI output ( 19 pin HDMI Type A ) 1 x DC power input 1 x Control-L (LANC) ( sub-mini phone stereo 2.5 mm ) TC input / output 1 x Genlock ( BNC ) 1 x HD/SD-SDI output ( BNC )
Memory Card SlotCompactFlash Card, SD card
Peripheral DevicesUSB port, CD-ROM drive
Included AccessoriesLens hood, camcorder shoulder strap, lens cap, microphone holder, component video cable, IR remote control, power adapter with battery charger
Details1 x Li-ion rechargeable battery ( included )
Memory Card SlotCompactFlash Card, SD card
Supported Memory CardsCompactFlash
Image StorageJPEG 1920 x 1280 JPEG 1280 x 720
Width5.5 in
Depth10.6 in
Height7.5 in
Weight2.4 lbs
Min Operating Temperature23 °F
Max Operating Temperature113 °F
